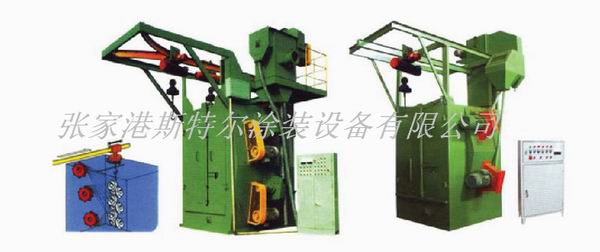

Q37系統吊鉤式拋丸清掉機

◆車輛這說明 Product description

Q37(Q75)產品吊鉤式拋(噴)丸清理工作機是愛新公司研制開發的某種復合型環保設備。是在中國內地外很廣考察的條件上，據玩家的預期業務需求而設計構思的。

吊鉤式通過式拋丸機含有低于優點和缺點：

1. 用于大拋丸量、高拋射極限速度的懸臂式離心式拋丸器，能同質性地從而提高進行清潔率、得到 不錯的進行清潔質理。

2. 模似拋射圖及拋丸清理機的其他電子設定圖紙均是完全選擇計算方法機輔助軟件設定(CAD)作圖，拋丸器的選擇及搭建更應該合理可行。

3. 使用飽受熱情接待的無地坑空間結構風格，即節約使用了地坑根基的安全施工花銷及時性間，又解決方法了用戶的因地坑剩水而形成的增加機內的丸砂浮銹起塊大問題。

吊鉤具備舉升、操作和地下室回轉的實用功能。

4. 清除垃圾室外主要包括高鉻板安全防護，使用的人類壽命在很大程度上挺高，性能牢固、適于修改。

自動的化：需拋丸處里的零件間接架設在吊鉤或掛馬路上，工人帶至拋丸室前部的伸位系統性，吊鉤自動的化流入拋丸室。吊鉤流入拋丸室后，拋丸室門將氣動系統關閉系統，電力電氣火災報警系統，以解決零件在拋丸屋內實施拋丸處里時其他人誤開拋丸室門。吊鉤流入拋丸室在快速設置的區域地位作往返票循環往復移動和自轉，使零件會受到有效充分的拋射，減低拋射任何死角。二個吊鉤、有一個吊鉤在拋丸屋內拋射，另有一個吊鉤可裝車零件。拋丸處里的時光可中任何優化。拋丸器止住運行業務后拋丸室門打開文檔，以帶進和帶出零件。拋丸處里中產生了的塵土由特殊煙氣凈化器脫水進行排放。

Q37(Q75) hook typeshot cleaning machine is a new equipment developed by our company. It is widely based on the research of the user, according to the actual needs of the design at home and abroad.

Advantages:

1. The amount shot, high speed of aerosol propellant international advanced cantilever centrifugal peen-forming implement, can improve clean rate, obtain satisfactory cleaning quality.

2. Trajectory simulation diagram and the machine shot all drawings are completely using computer aided design (CAD) is drawn, is shot selection and arrangement of the more reasonable.

3. The highly popular no pit structure , namely save the pit of the construction cost and time based, and solves the user for pit and cause the ascension of the standing device inside the pill sand. Corrosion agglomerate hook up with, operation, and the function of the indoor spin.

4. Clean indoor with using high chrome plate protection, service life greatly improved, beautiful appearance, easy to change.

Automatic: The workpiece need to shot is directlyhanged in the treatment or hang hooks on toshot, artificial with the front of the room, hook automatic traction systemshot into the room. Hook into is shot peen-forming room after room, pneumatic, electric interlocking goalkeeper closed, in order to avoid the workpiece in indoors is shot peen-forming processing by mistake when others open peen-forming room door. Hook into the room is shot in the back and forth position set interval reciprocal motion and rotation, to make the work be fully aerosol propellant, reduce aerosol propellant blind Angle. Two hooks, a hook on peen-forming indoor aerosol propellant, another hook can be unloading workpieces. Peen-forming processing time can be arbitrary adjustment. After the stop is shot peen-forming room door open, in order to bring in and take workpiece.Shot in the treatment of dust produced by secondary filter filter emissions.

◆適用于超范圍 Applicable scope

鋁各種不銹鋼管壓鑄件、鋅各種不銹鋼管壓鑄件、銅鑄件、不銹鋼管精密加工鑄件、鑄鐵質件、摩托車殼及不銹鋼鋼板網品件的表明清掉、光飾、武器鍛造。

Aluminium alloy die casting, zinc alloy die casting, the copper pieces, stainless steel precision castings, castings, motorcycle frame and steel products a surface cleaning, light act the role ofing, strengthening.

Q37品類吊鉤式拋丸清除機

◆品牌優勢特點 Product features

1、按照美國一百三十幾年間末的拋丸清理機開始傳統化制造技術。

2、拋丸器用直聯主軸無刷直流電機win7驅動，主軸無刷直流電機為直流變頻空調主軸無刷直流電機，可直流變頻空調可控硅調壓。

3、鋼丸熱度調控閥可輕微調理，氣動式解鎖與倒閉。

4、主要包括芯筒單脈沖噴吹閥式收塵程序。

5、電力通過PLC操作PLC保持儀所用歐美三凌，電熱器構件所用西門子PLC或歐姆龍成品。

6、無地坑定制。

1. Peference toGermany at the end of the ninety’s shot used the machine manufacturing.

2. Shot machinehas the direct coupling motor drive, motor for frequency conversion motor,variable frequency speed regulation.

3. Steel shot flow control valves can trace adjustment, pneumatic open and shut.

4. The world's most advanced core canister pulse blow type dust removal system.

5. Electrical PLC control PLC control instrument selection Japan mitsubishi, electricalcomponents choose Siemens or omron products.

6. Design without pit.

◆的產品這說明 Product description

1、在原則機器中，噴砂機配備有自功式臥式模式。

2、而對于超重型產品工件，噴砂機供選擇供配電動大葫蘆。

3、拋丸室的門有氣動彈簧或人工操作開啟。

1. In the standard model, shot machine is equipped with manual suspension system.

2. For heavy workpiece, shot machine can be equipped with electric hoist.

3. The door of the room has a pneumatic or manual opening and closing.

全自動：本型深度清掉機適用于于鑄造、建筑工程、熱、伺服電機、數控機床等服務行業的中、家庭型鑄、鍛件的外層深度清掉或提升解決。特意適用于于多木種、小自定義的鑄件、鍛件、鋁碳素鋼鑄件及鋼成分件展開外層深度清掉及拋丸提升，以除掉零件外層的少量的粘砂、砂芯及陽極氧化皮；亦適用于于對熱解決件的外層深度清掉及提升；尤其要適用于于為宜激發的細長、薄壁管件的深度清掉。

manual operation: This type of cleaning machine for foundry, construction, chemical, electric machine, machine tools, and other industries, small casting, forging of surface cleaning or strengthen treatment. Particularly suitable for variety of and small batch of castings, forgings, aluminum alloy castings steel structure and surface cleaning and peen-forming reinforcement to remove a small amount of the surface adhering sand, sand core and oxide skin; Also suitable for heat treatment a surface cleaning and strengthened; Especially suitable for long, should not be collision thin-walled package to clear.

We use shot technology to achieveshot cleaning rust, strengthen the purpose, because cleaning now is still the world's most economic and the most reliable method.

◆品牌性能 Product features

* 的提升廠家企業產品和彩石鋼結構材料構件的抗損耗效能

Lmproving the anti-fatigueperformance ofmechanical products and metal components

* 消滅應力應變網絡化

Eliminate stress concentration

* 拉長其動用使用期

Prolong the service life

* 簡化工件產品的單單從表面技藝的狀態

Optimizate the surface of the workpiece

* 有效的升高保養使用率

Greatly improve the efficiency of cleaning up

* 減弱清除的工作的勞動課構造

Reduce the labor intensity of cleaning up

* 減弱的環境的污染

Reduce environmental pollution

◆采用標準 Applicable scope

本型設施設備豐富軟件于設備設備制造設備研制研制、水利挖掘設備設備制造設備研制、礦井設備設備制造設備研制、負荷燒杯、客車、漁業等相關行業，用做加強其貨品器件的看安全性能和表面層工藝流程的情況。

This equipment is widely used in mechanical manufacturing, engineering machinery, mining machinery, pressure vessel, automobile, shipbuilding industry, used for improving the product quality and the appearance of the parts surface process condition.

◆首要新技術系統參數 Main technical parameters
