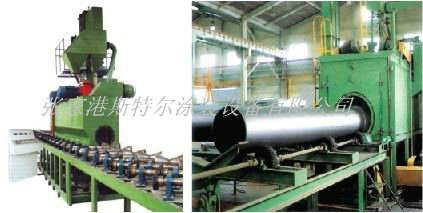

不銹鋼鋼管縱向壁拋噴丸進行清理機
◆企業產品優缺點 Product features
鍍鋅管內壁拋丸保養機適合于大、中、小鍍鋅管、氧氣瓶的表層治療和強化、軸類零件的自然電動機、自然勻速行走，軸類零件的的暖機轉速可基于軸類零件的的規范要求對其進行即使調控，可設汁成單管、雙管、3管、4管、進化后可進行清潔較大型管材、儲罐，化工廠倉儲罐鐵路交通貨車等。
The outer steel wall of shot cleaning machine is used in large, medium and small steel tube, the cylinder's surface treatment and strengthening, workpiece rotating, automatic walk, the operation speed according to the requirements can be adjusted, can design the single pipe, double tube, 3, 4 pipe, tube variation can be clean up after large-scale pipe, oil tank, chemical storage tank railway vehicles and so on.
◆注意的型號規格值 Main technical parameters
|
清洗螺旋鋼管尺寸規格 Clean steel pipe size |
Φ300×5000mm |
拋丸器量 The number of shot peening machie |
2臺 |
|
輥道加載線速度 Roller speed |
1-5m/min |
拋丸器最大功率 Shot peening machie power |
11kw×2 |
|
彈丸截面積 Projectile diameter |
Φ0.8-Φ1.2mm |
拋丸量 The number of shot peening |
250kg/min×2 |
|
第二次彈丸裝到量 The first projectile into amount |
800kg |
轉子網套直徑 Impellerdiameter |
Φ250mm |
|
進(出)料輥道的長度 Length of material into(out) the roller |
5000mm |
離心葉輪轉速比 Impeller speed |
2930r/min |
|
輥距 Roller dimension |
400mm |
拋射流速 Aerosol propellant speed |
60-70m/s |
|
承載力承重 Load weight |
30kg/m |
優化機最大功率 Hoist machine power |
3kw |
|
擺線低速機工作效率 Cycloidal reducer power |
2.2kw |
加快量 Ascension of |
30/h |
|
篩選布袋條數 The number of filter bag |
36條 |
分開量 Separation of |
30t/h |
|
過濾裝置布袋要求 Specification of filter bag |
Φ120×5000mm |
堅向錐形工作電壓Longitudinal spiral power |
3kw |
|
處里功率 Processing air volume |
9800m3/h |
傳送量 Throughput |
30t/h |
|
除塵系統羅茨風機工作效率 Dust electromotor power |
5.5kw |
總電機功率 Total power |
37kw左右兩 |
|
振打交流電動機耗油率 Vibration motor power |
0.75kw |
裝備外貌尺寸大小 Shape dimension |
15000×4600×5000mm |
