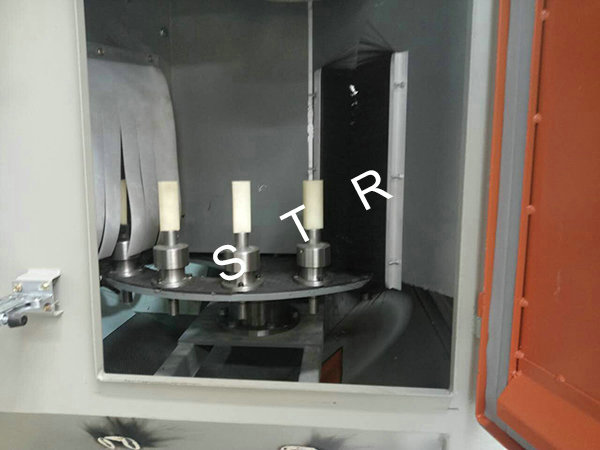

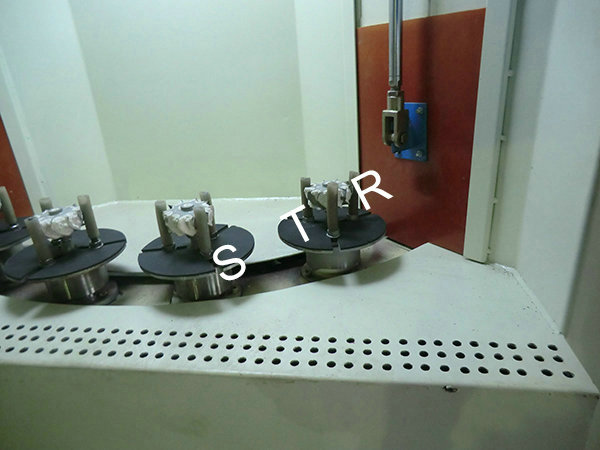

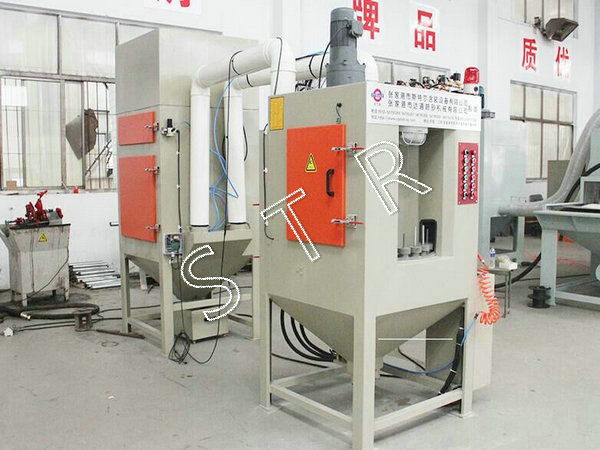

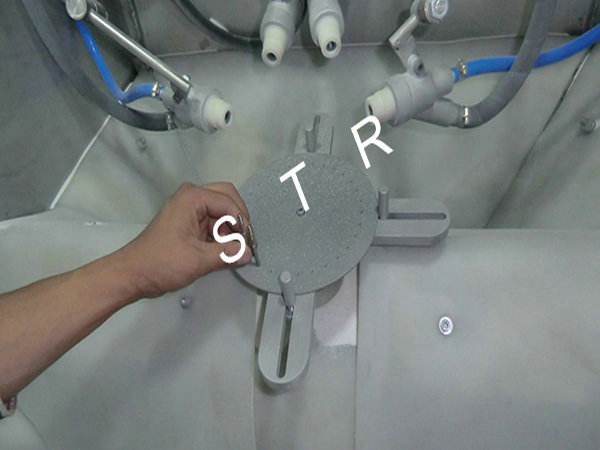

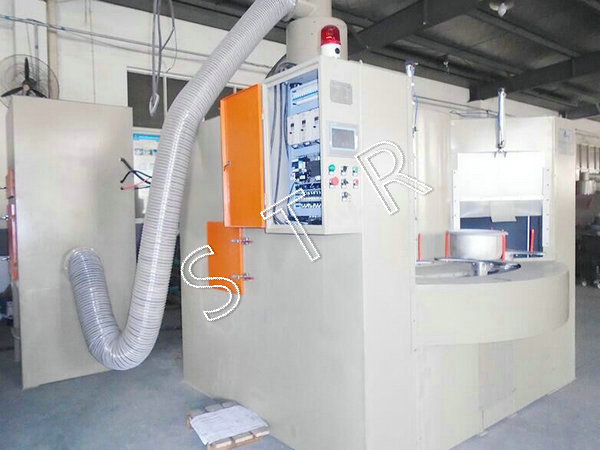

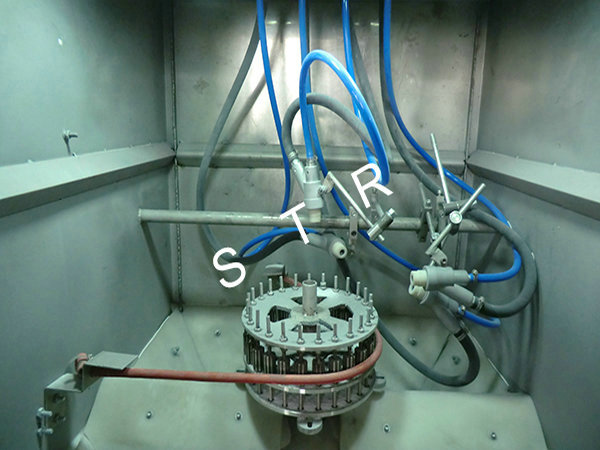

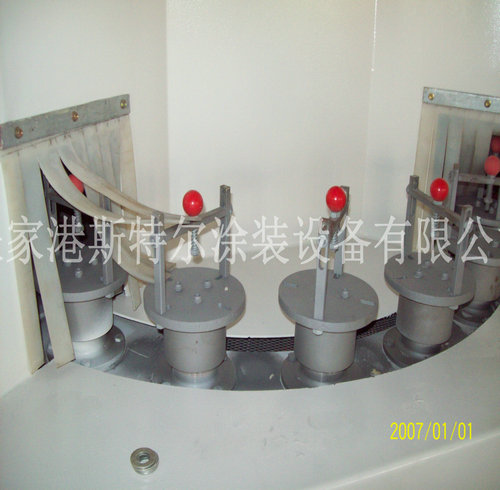

本噴砂機適用于10-490mm截面積的分類工件產品的室內外表通常看上去面層純手工方法噴砂英語作業,清理掉外表通常看上去面層的銹跡、界面層除銹設備、界面層淬煉、加快模糊度、徹底清除界面層地應力等。(如:電飯煲、杯具、不粘鍋、華為手機硬殼、PC電腦硬殼、離心葉輪、鋸條之類的)可按客人標準要求訂做單鉗臺器具或雙鉗臺器具。
The sandblasting machines apply to 10-490 mm diameter of of all kinds of the internal and external surfaces of the manual operation sandblast homework, remove the dirt, surface derusting appearance, surface strengthening and improving roughness, removing surface stress, etc. (for example: electric meal bao, cup with, titanium, cell phone casing, computer shell, impeller, saw blades, etc) make single or double position according to customers' special requirements.
◆首要技術應用因素 Main technical parameters
器機規格型號 Model |
STR-A1500型十三槍園盤旋轉氣缸式 |
STR-A1600型八槍園盤旋轉氣缸式 |
STR-A1600型十四槍圓筒換向式 |
空機尺寸圖 Complete machine size(mm) |
1500×2160×3000 |
1600×1800×2500 |
2200×2400×3000 |
上班艙面積 Working class size(mm) |
Φ1400 |
Φ1500 |
Φ2000 |
除塵設備箱長寬比 Dedust box sizes(mm) |
1000×1200×2500 |
1000×1200×2500 |
1400×1400×2500 |
小轉盤數 The small turntable for |
16個 |
8個 |
8個 |
噴槍數 Gun number |
12把 |
8把 |
14把 |
主機電源 Power |
380V三相四線制電 |
380V三相電機電 |
380V三相電源電 |
照明 Floodlight |
2盞防震燈 |
2盞防爆設備燈 |
2盞防暴燈 |
設備含量 Machine weight |
800kg |
750kg |
800kg |
