無塵自動循環回收噴砂機系列

◆廠品特色 Product features（請向上觀看有個量裝修案例圖片視頻供選取）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”藥廠車間空氣的塵土安全標。砂料、塵土自功收回、分割、循環系統用到，運轉現廠清洗無塵土被污染。產品干凈設計的概念，盡可能緩和了職工的工作力度和作業題區域環境還配有反吹風器，可智能清楚濾心浮灰。預置分水濾出器。可對縮小空氣中實施二級水和油分離法。智能送料機，將吸砂頭復制到砂料中，啟動的正空泵軟件系統將智能送料機。PLC可程序設計調控（加裝），料位報警器的功能(標準配置)。現有調壓旋扭、反吹風按健。維持的氣控儀器與金剛石工具閥。操作的半徑20-70米，界面補救定級達Sa2.5-3級。增加安全管理防潮電壓插排插口，非常以便于進行。增加操縱電壓航空公司插排插口非常以便于進行。獨具特色形象的防火操縱后蓋板與電控系統系統箱。維修保養與維修保養特意非常以便于。車式膽機機箱形式，防水防雨防火，移動端非常以便于。膽機機箱門扇采取安全門瑣連接起來，拆御非常以便于。手觸點開關操縱（電控系統系統DC24V）。一機三用，更具對外混合式、工業企業吸砂器、環保節能型以下幾種設施的功效。噴砂電腦主機主要采用特出控住漏電開關，工作中壓力差在0.2Kpa-0.8Kpa條件內其中任何調準，可需求有所不同產品工件的噴砂技藝規定。操作條件：噴砂除銹、除油漆物料染、焊道處理（還有304不銹鋼304對接焊縫基本四周的去黑、去焊渣正確治療）去刀痕、飛邊、硫化皮、304不銹鋼304，鋁合金型材單單從單單從表面的簡美型亞光正確治療（耐污性好一點、可遮住刮破）、去混泥土土、石雕單單從單單從表面污圬等正確治療。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆主耍新技術數據 Main technical parameters

機器人材質 Model	STR-B型無塵自動循環回收式噴砂機
運作電源適配器 Work power	380V 50HZ
氧氣氣壓 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
直流無刷電機工率 Motor power	4kw
工作的吸收率 Work efficiency	6-10m2
崗位曲率半徑 Work radius	10m 可會根據業務需求改大，實際上咨詢了解。人工服務
工作任務形態 Work form	自動化間歇再利用Automatic cycle recovery
保養級別為 Clean level	Sa2-3
粗糙，度 Roughness	60μm以內
容量 Weight	260kg
樣貌寬度 Shape dimension	1380×830×1700mm
砂料規模 Sand material specifications	20-100#往上（1.0mm-0.04mm）

◆支持范圍內 Applicable scope

1.干凈想要高且無所有的除灰裝備的公開場合；

2.處理平衡等級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

操作超范圍：除銹設備、除表面油漆對接焊縫操作去麻點、飛邊、腐蝕皮鋁合金、鋁合金界面的典雅型亞光補救（耐污性最合適、可遮蓋住出現劃傷）去混疑土、石雕外表污圬等補救。

（基本姿料可可以參考A型或撥通我機構）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 產品的亮點 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已文件壓縮，需求就是說簡單室外基礎施工移動端簡單，盡可能的減低了工作密度，還有處理錯誤率在境內累似型企業產品快速；贏得社會上客人的統一認為，并現已贏得了具有廣泛性的宣傳推廣和動用！（準確數據可參看A型或撥打我機構）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

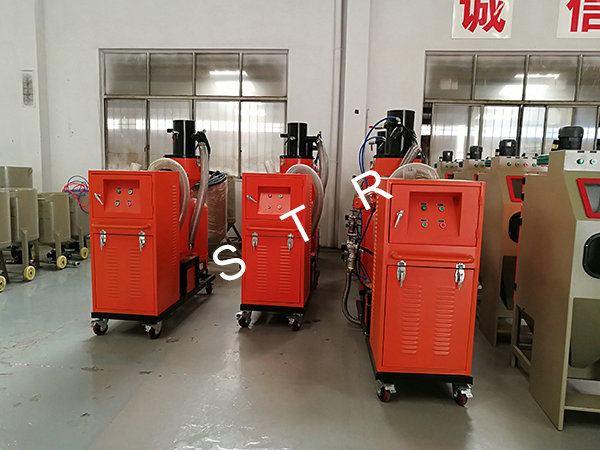

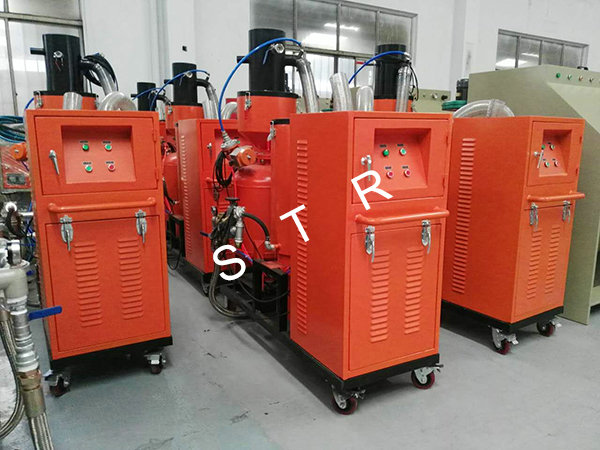

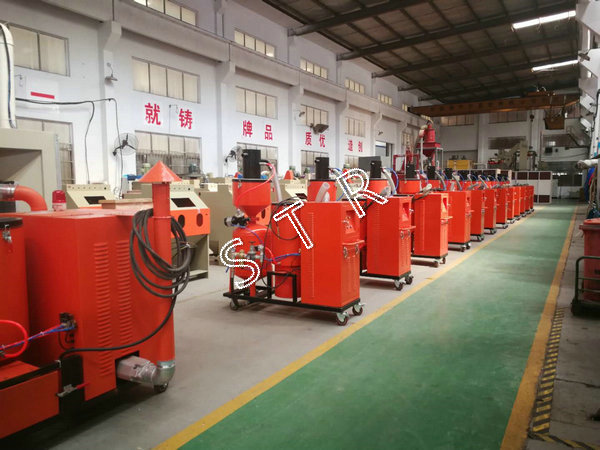

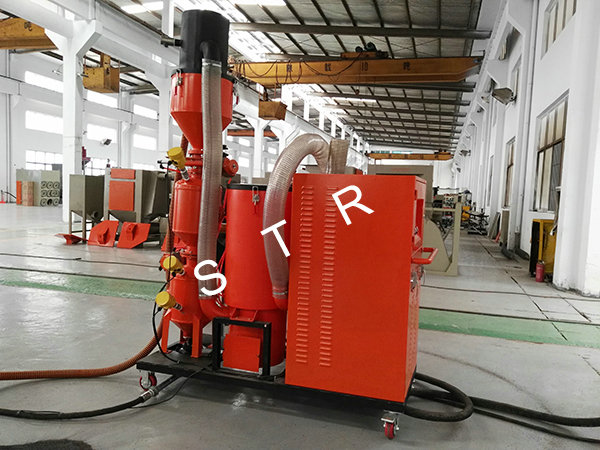

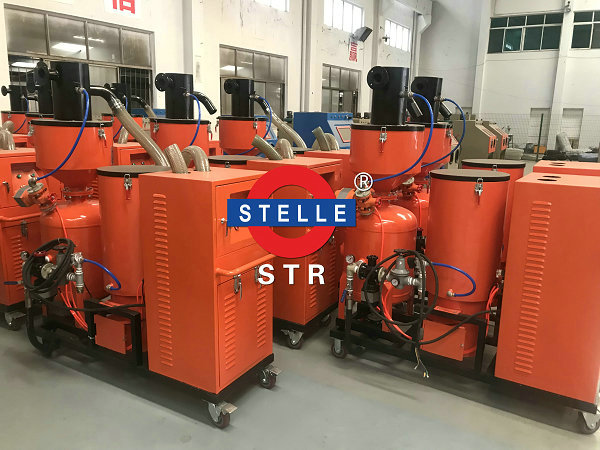

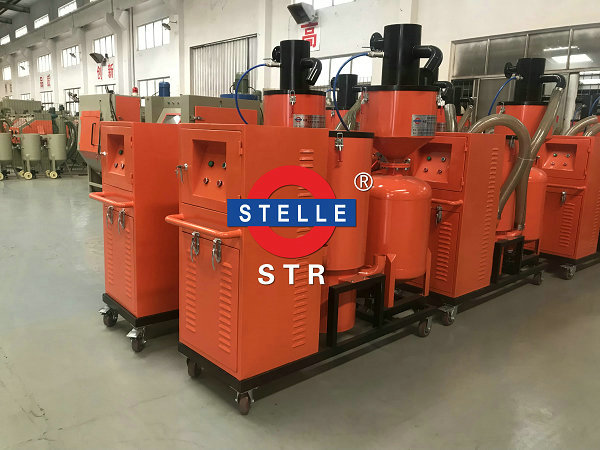

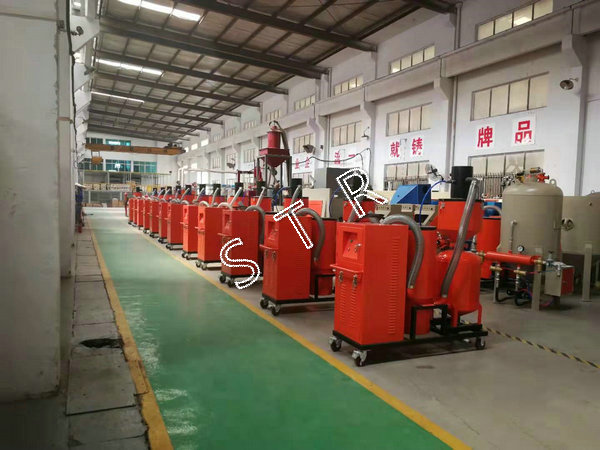

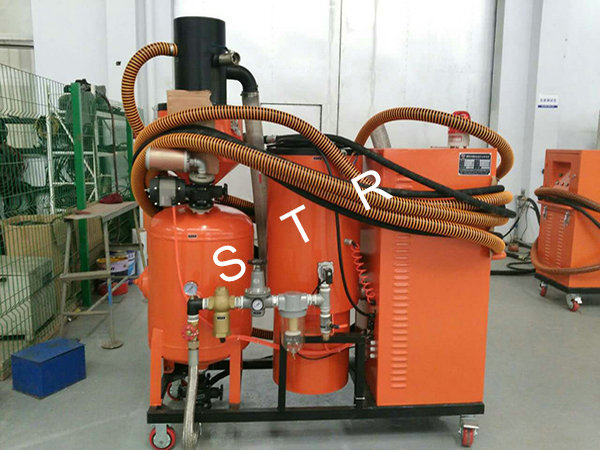

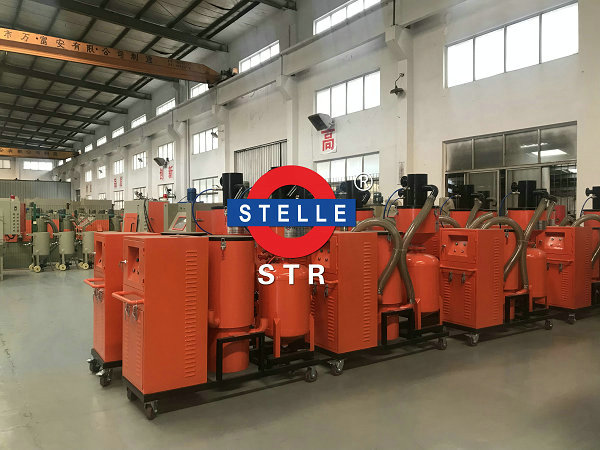

部份無塵自動循環環保型噴砂機案例:
